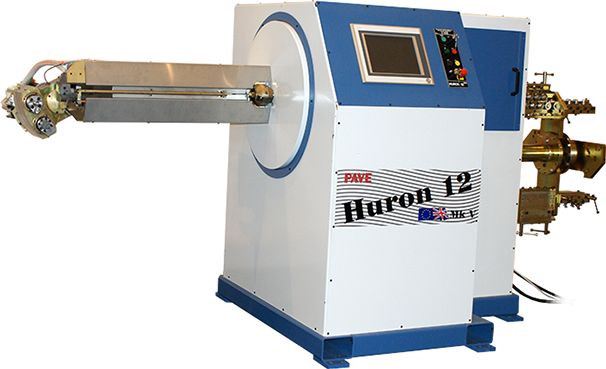

Huron 12 Mk7 CNC Wire Bending Machine

Huron 12 Mk7 CNC Wire Bending Machine

https://youtu.be/2Ps_fgU0fPw?rel=0 High Performance - Profitable Solutions https://youtu.be/UmikxLvsH9A?rel=0 Fully automatic CNC wire bending production cell https://youtu.be/SJ9-yD20CXM?rel=0 Huron 12 Mk7 CNC Wire Bending Machine. An ideal HIGH SPEED CNC wire bending machine Features and Benefits: The latest innovative ‘Front End Wire Stabiliser DesignOptional: quick change 4 station straightener tooling carouselCapable of bending wire sizes up to: 13mm/odComplete with automatic off-load and stack system for the manufacture of Exhaust hangers and other automotive wire products.Comes complete with Paves unique front-end wire stabiliser ideal to produce high-speed accurate wire formed parts along with leading user-friendly CNC controller and softwareWire stabiliserNew design operating and forming…
Read More
Twin Head Variform 12 Mk 6

Twin Head Variform 12 Mk 6

https://youtu.be/VGOiuEeD59E?rel=0 Fully automatic CNC wire bending production cell https://youtu.be/SJ9-yD20CXM?rel=0 High Performance - Profitable Solutions Variform CNC Twinhead Wire Bending Machine. Fully programmable to produce three dimensional shapes. Featuring the very latest Pave High Performance CNC Controller Technology and Software. Feature and Benefits: Capable of bending up to: 12.7mm Diameter and 3500mm Long.Ten programmable bending speeds – up to 0.5 seconds for 180 degrees.Repeatability on bend angle +/- 0.05 degrees.Variable carriage speeds up to 60 metres per minute, with positional tolerance 0.01mm from datum.Clamp unit allows 360 degrees rotation of wire, with 10 programmable speeds up to 0.02 seconds for 90…
Read More

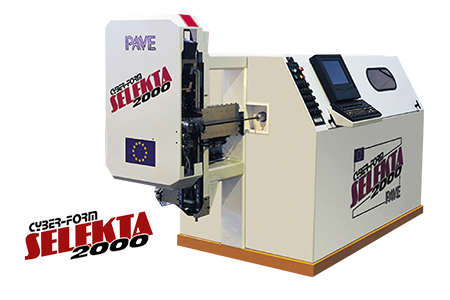

Single Head Cyberform Selekta 2000 Mk 8

Single Head Cyberform Selekta 2000 Mk 8

https://youtu.be/SJ9-yD20CXM?rel=0 High Performance - Profitable Solutions Cyberform Selekta 2000 Mk8 Single Head. Capable of bending wire sizes from: 2mm/od up to 8mm/od. Featuring the very latest Pave High Performance CNC Controller Technology and Software Features and Benefits: PAVE’s highly economical Cyber-Form Selekta 2000 machines have been developed from the successful Cyber Form Twin range.Compact forming centres, unique and robust 360-degree dimensional wire bending capability.The Cyber-Form Selekta 2000 ‘s totally integrated and selectable multi head wire forming facility provides a wide range of ‘in cycle’ wire bending and end finishing options.The fully automatic CNC system allows several normally separate processing operations to be performed at the same…
Read More

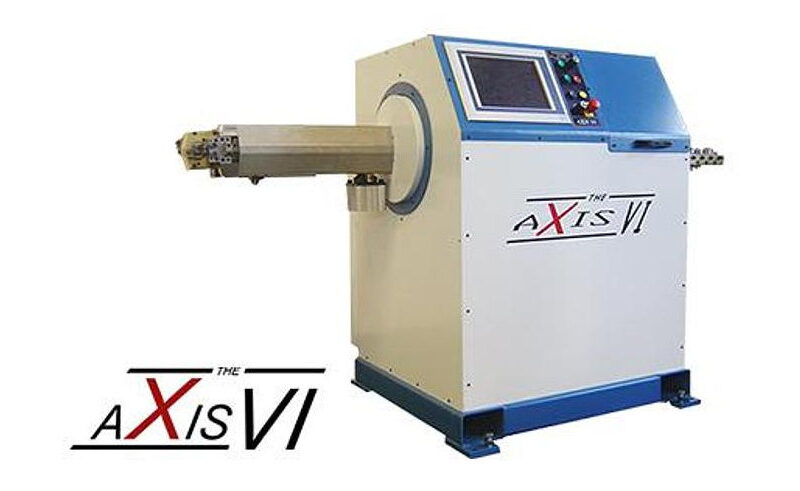

Single Head Axis VI Mk 5

Single Head Axis VI Mk 5

https://youtu.be/SJ9-yD20CXM?rel=0 High Performance - Profitable Solutions Axis Vi Mk5 Single Head CNC Wire Bending Machine. The most popular 7mm CNC production wire bending machine. Featuring the very latest Pave Touch Screen Programming Technology - Used by Professionals Features and Benefits: The leading and most advanced user-friendly CNC controller and softwareCapable of wire bending up to 7mm/odVideo assisted touch screen programmingHigh output levels with reduction costsMinimum set up and change over timesHigh output levels with reduced production costsHighly cost efficient, fast, reliable and compactShort and long length high quality productsWatch the video which shows the simplicity and user-friendly nature of the…
Read More
Twin Head Bar Bender

Twin Head Bar Bender

https://youtu.be/SJ9-yD20CXM?rel=0 High Performance - Profitable Solutions Twinhead Bar Bender. A full CNC 25mm spring steel bar bending machine. Comes complete with a plane of bend facility for bending of 3D parts, Featuring the very latest Pave High Performance CNC Controller Technology and Software. Features and Benefits: Quick and easy tool change minimising down time, boosting productivity.Capacity up to 25mm diameter spring steel bar.Capable of handling bar lengths of up to 4.0 meters.Repeatability on bend angle +/- 0.1 degrees and +/- 0.1mm on position..Maximum feeder machine load time of 3.0 seconds.Maximum tooling change time of 15 minutes.Both bending heads are independently…
Read More
Twin Head Panther X3

Twin Head Panther X3

https://youtu.be/SJ9-yD20CXM?rel=0 High Performance - Profitable solutions Panther Twinhead X3. A full CNC wire bending machine. Capable of bending wire sizes from: 1.5mm/od up to 7mm/od x up to 3000mm/long. Featuring the very latest Pave Touch Screen CNC wire bending technology Feature and Benefits: From straight parts or from coil this machine encapsulates more than 40 years-experience in both wire straightening and bending technology,Combined with the all new software (animated icons, advanced graphical display techniques and CAD coordinate input) probably makes it the simplest programmable machine available anywhere.13 Programmable Axis.Fully Programmable three dimensional shapes.10 programmable bending speeds, up to 0.05 seconds…
Read More
Twin Head Micro Mac Mk 7

Twin Head Micro Mac Mk 7

https://youtu.be/wO6Zq-cZZlw?rel=0 When there is a need for speed... https://youtu.be/SJ9-yD20CXM?rel=0 High Performance - Profitable Solutions Micro Mac Mk7 Twinhead. True profile bending motion achieves greatly reduced power requirements working from coil. Capable of bending wire sizes: 2mm/od up to 6mm/od Features and Benefits: Fully programmable to produce three-dimensional shapesTen programmable bending speeds – up to 0.5 seconds for 180 degreesRepeatability on bend angle +/- 0.05 degreesVariable carriage speeds up to 80 meters per minute, with positional tolerance 0.01mm from datumClamp unit allows 360 degree rotation of wire, with 10 programmable speeds up to 0.02 seconds for 90 degreesSimple touch screen programming,…
Read More
Twin Head Triform Mk 4

Twin Head Triform Mk 4

https://youtu.be/SJ9-yD20CXM?rel=0 High Performance - Profitable Solutions Triform Mk4 CNC Twinhead Capable of wire bending up to: 8mm/od. The PAVE Triform CNC bending Technology System combines both the successful Variform and the Zukron technology. Its multi-head forming facility coupled with a retracting centre clamp gives one of the most versatile forming capabilities available today. The system can be supplied in either a straight length or from coil version. Features and Benefits: Capacity up to 8mm wire diameter and cut lengths of up to 3.5 meters (3.75 meters from coil)Repeatability on bend angle +/-0.1 deg' and +/- 0.1 mm on positionMulti-wire forming facility when…
Read More

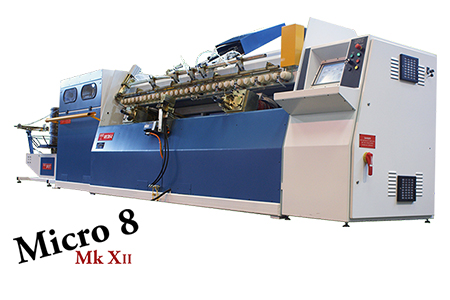

Twin Head Micro 8 Mk 12

Twin Head Micro 8 Mk 12

https://youtu.be/cGusKrtbwJ4?rel=0 High Performance - Profitable Solutions https://youtu.be/SJ9-yD20CXM?rel=0 Micro 8 Mk12 Twinhead. A full 8mm CNC twinhead wire forming machine. Featuring the very latest Pave CNC High Performance CNC Controller Technology and Software. Features and Benefits: Fully programmable to produce three dimensional shapes.Capable of bending up to: 8mm/od x 3500mm long.Ten programmable bending speeds – up to 0.5 seconds for 180 degrees.Repeatability on bend angle =/- 0.05 degrees.Variable carriage speeds up to 60 meters per minute, with positional tolerance 0.01mm from datum.Clamp unit allows 360 degree rotation of wire, with 10 programmable speeds up to 0.02 seconds for 90 degrees.Simple touch screen…
Read More
